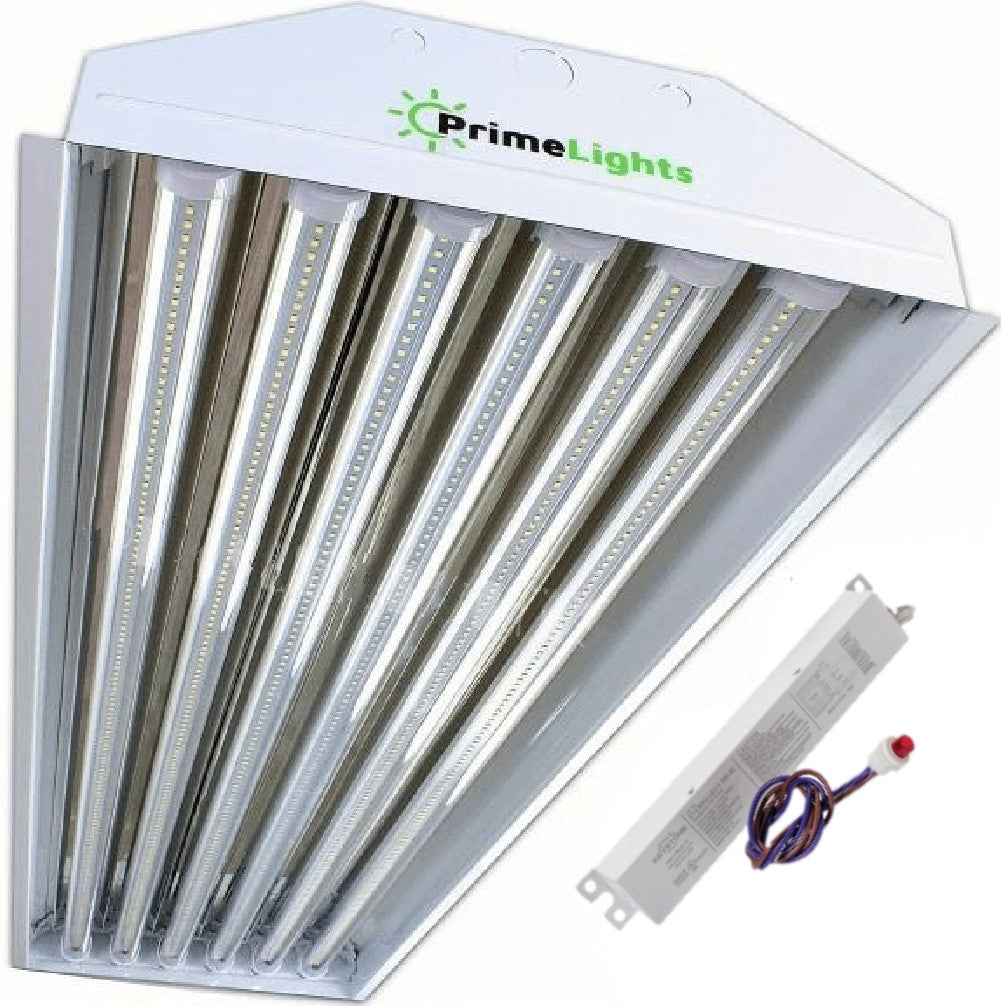

4ft. LED 6 Lamp T8 STINGRAY® 6XL Highbay Light 108W With 90 Minute Emergency Battery Backup 19,440 Lumens

FIXTURE MADE IN USA!

Buy American Compliant

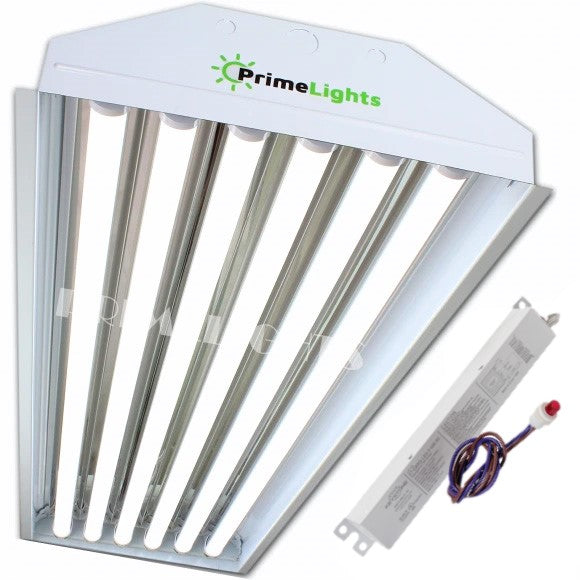

Clear version comes with independently wired 90 minute EM battery backup tube, whereas the frosted version features a factory installed 90 minute EM battery pack. For both options the light will run for and additional 90 minutes after power outage.  UL listed and tested thoroughly so you can count on it when you need it most.

COMMERCIAL SPECIFICATION GRADE COMPLAINT WITH ANY CODE REQUIRING EMERGENCY BACKUP BATTERY LIGHTS.  THIS USA MADE LIGHT IS IDEAL FOR STORES, WAREHOUSES, BUSINESS'S AND SHOPS THAT REQUIRE A BATTERY BACKUP.

If you are needing the regular version to purchase as well with the Battery version see link for details:

https://www.primelights.com/collections/stingray

3rd Party Testing:  We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States.  Contact for Rebate Info.

We do ask that you have a professional electrician install the lights as both options will require their own independent power to maintain a constant charge.

Shipping: FREE, In Stock

Certifications: UL Listed (fixture and lamps), NSF, Shatterproof, Contact for Rebate Info

Warranty: 5 years on complete fixture including LED lamps

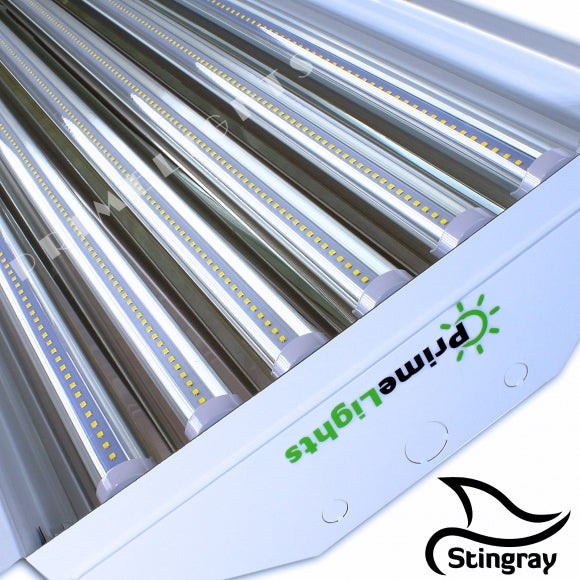

Included Lamps: (6) Clear or Frosted flicker-free, shatterproof polycarbonate (imported)

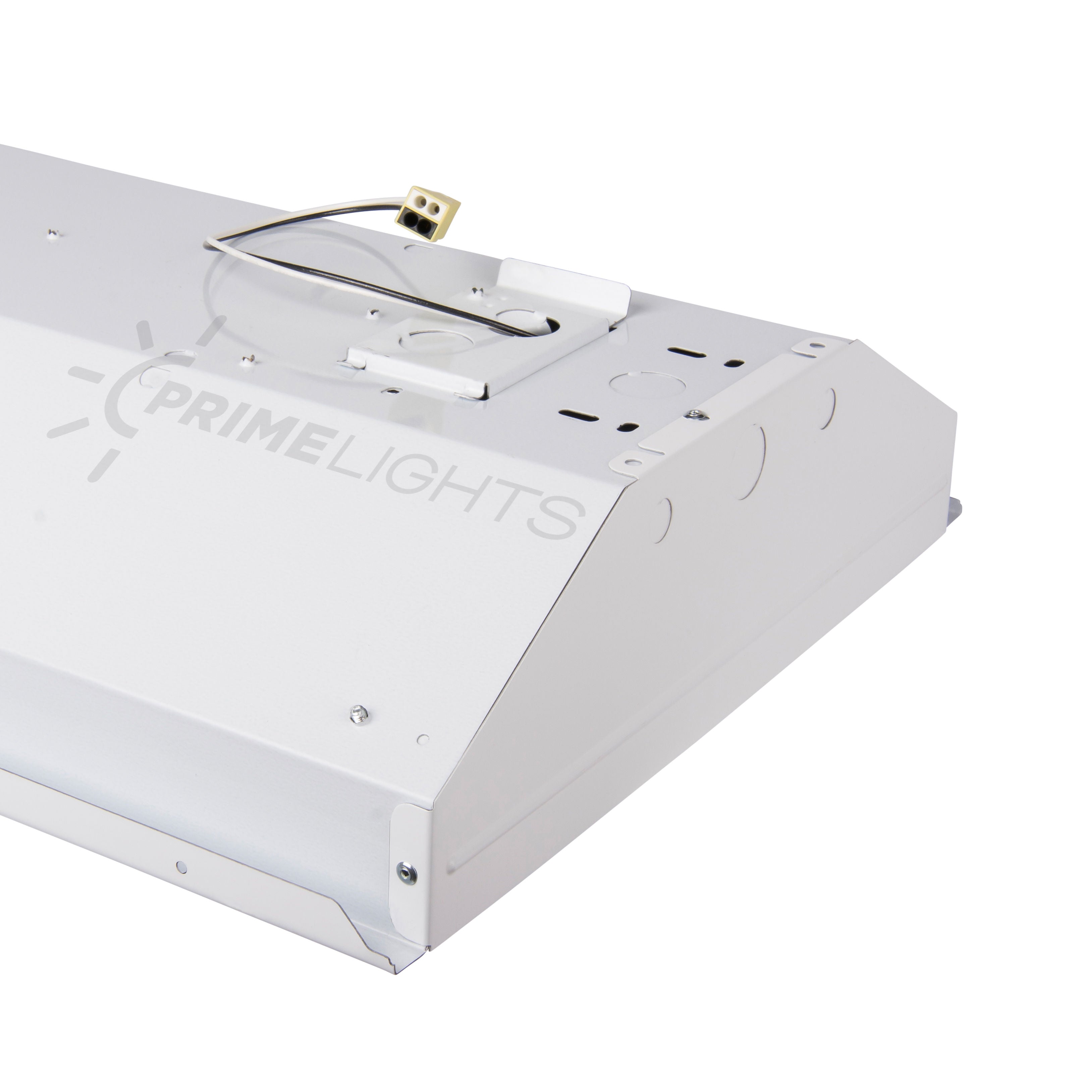

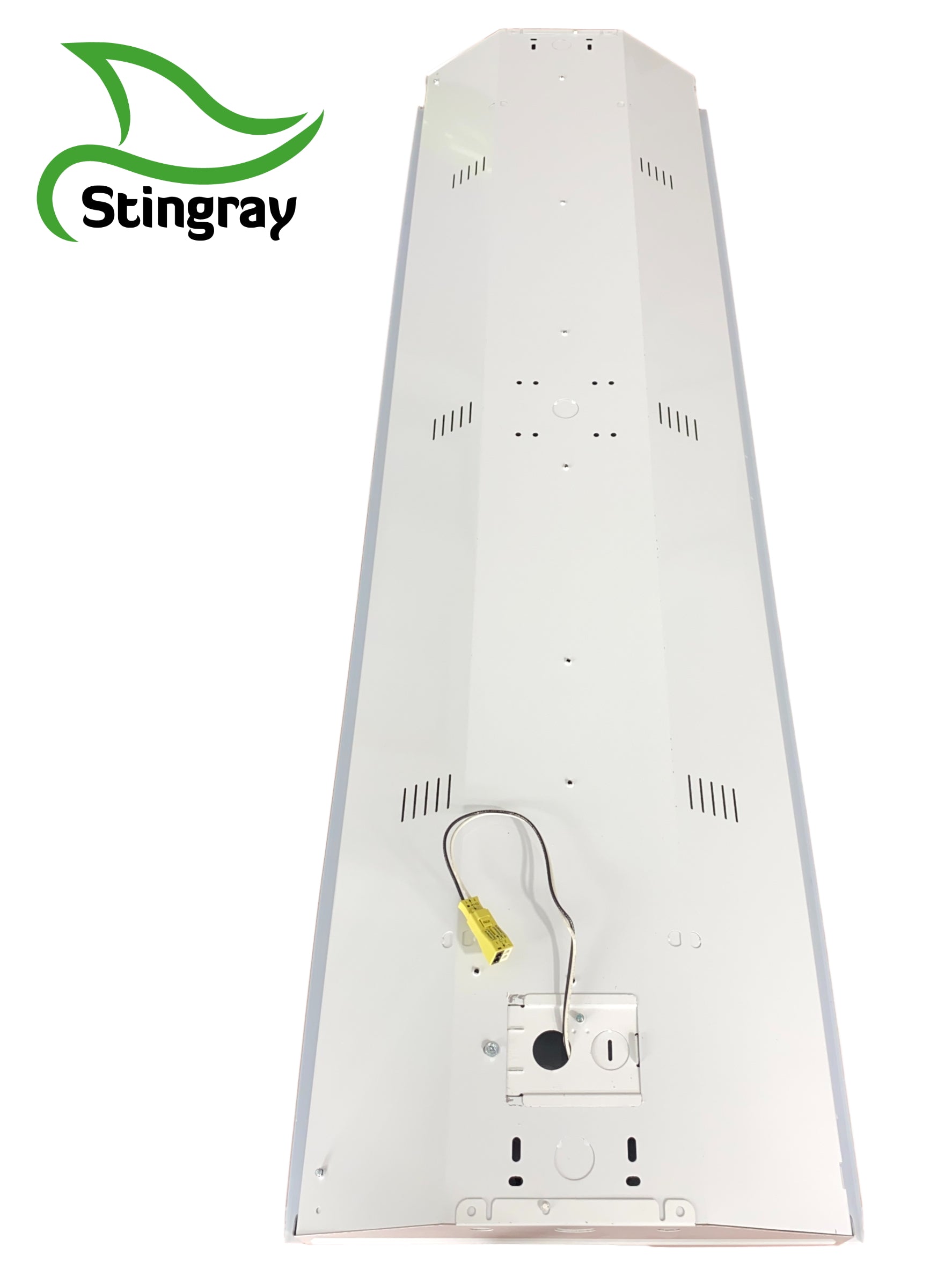

Specifications: Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Clear or Frosted LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!

Color Temperature: 5000K daylight white (call for others)

CRI: 85+

Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.9A / Amperage @ 277V: 0.39A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 38,880 (fluorescent equiv.)

Lamp Lens: Clear or Frosted

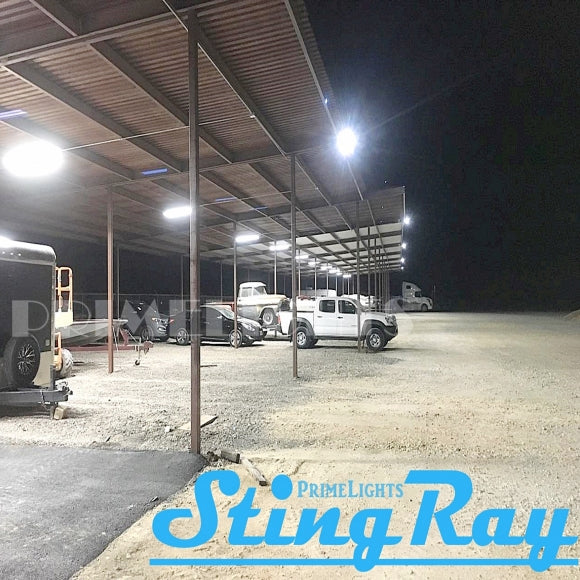

Install Location: Damp Rated – Indoor/Outdoor Covered (no direct water)

Dimming: No (LED with replaceable lamps cannot be installed with dimmer)

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Flush mount Install weight (without reflector and lamps): 7.5 lbs

Total weight: 11.25 lbs

Part Number: PL-EBB-6SRHBLD132XX (CL or FR)

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available in accessories)

Mounting Options (Hardware not included)

-Surface mountable (most common): Use screws best for mounting material or toggle bolts

-Hang: Aircraft Cable Hangers available in accessories or use any chain with “s” hooks

*Energy Usage: Approx. 40% Less than T8 Fluorescent

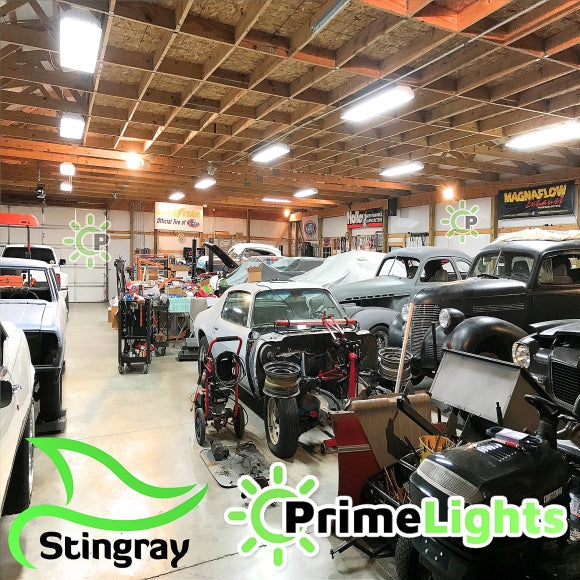

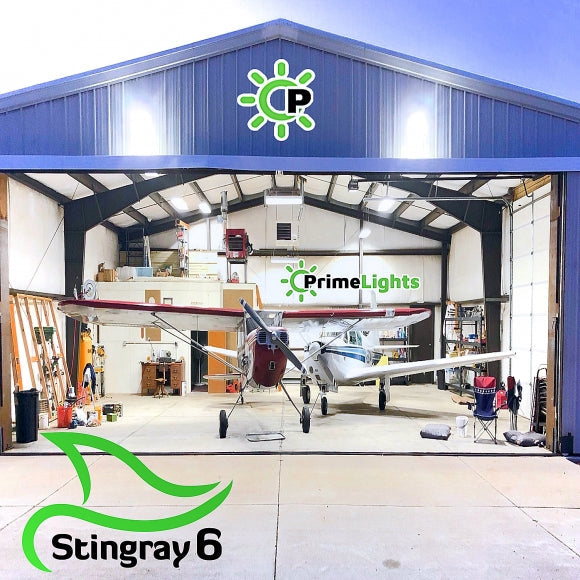

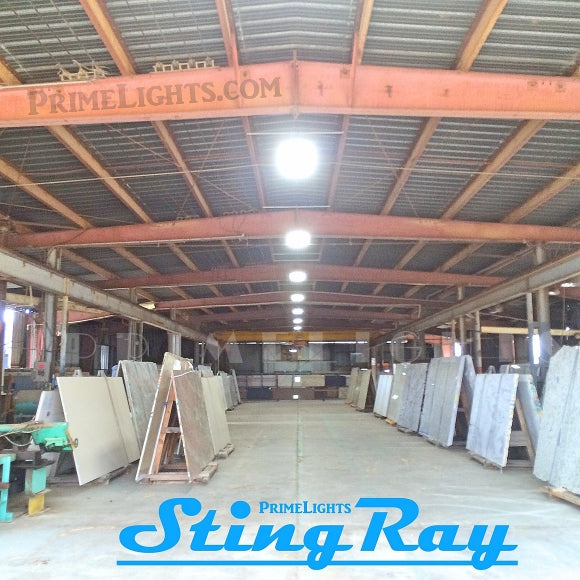

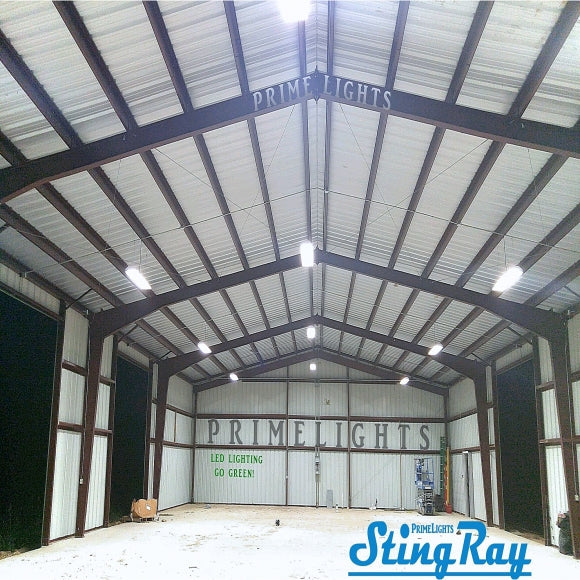

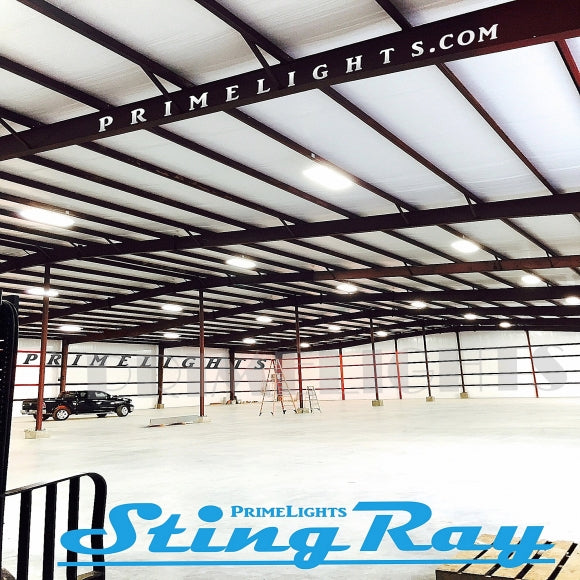

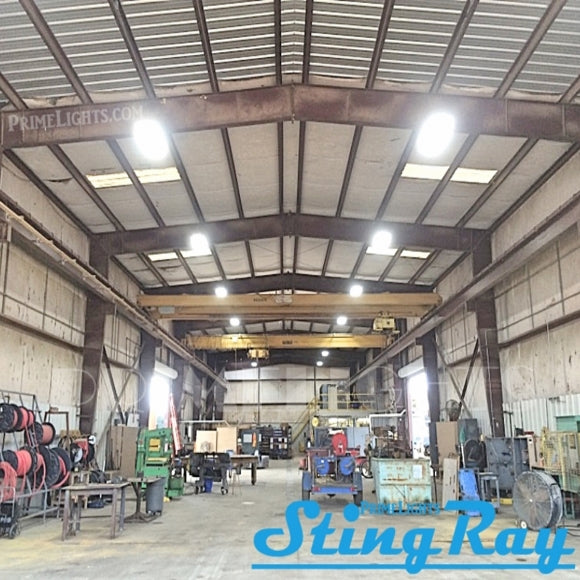

Applications:  The PrimeLights® LED Stingray® 6 is the ideal fixture for ceiling heights ranging up to about 35’.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Frosted lamps provide reduced glare when compared to clear.  For lower ceilings please see our LED Stingray® 4.

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 400W metal halides, or approx. 1 fixture per 400sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.

 THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD SOLELY BY PRIMELIGHTS®
