4ft. LED 4 Lamp T8 STINGRAY® 4XL GEN 2.0 - 80W Clear/Frosted LEDs 14,400 lumens

Rated 4.9 out of 5
Based on 229 reviews
SKU: PL-4SRHBG2-80XLCL
$220 $139
Tube Style: Clear LED Tubes
Time to choose the lenses that are right for you
What type of lenses do you need *
We need to get your bifocal or varifocal lenses right, this is how it works *
When you order bifoclas or varifocals we send the frames out to you before making your prescription lenses. You will use the frames to take some important measurments. Next, you'll send back your frames free of charge so that we can produce your perfect prescription lenses. We know some other websites don't do this, but we think it's important to get your glasses right. Any questions, please do contact us!
What numbers do you need to provide us with from your prescription? *
Please select all of the numbers you can see information for on your prescription.
Right Sphere (SPH) *
Left Sphere (SPH) *
Right Cylinder (CYL) *
Left Cylinder (CYL) *
Right Axis (AXI) *
Left Axis (AXI) *
Right Near/reading addition (ADD) *
Left Near/reading addition (ADD) *
Right Addition (ADD) Intermediate *
Left Addition (ADD) Intermediate *
We need to provide you with a personal quote. *
Your prescription is slightly outside of the standard range for getting an online order right. We would like to provide you with the perfect pair of glasses, at an affordable price. Please contact us using the details on our website and we can provide you with an affordable quote that best meets your needs. It's quick, easy and it mean you'll get the right glasses for you.
Do you have one or two Pupillary Distance (PD) values? *
Some people might see more that one PD number on their prescrition. Measuring your PD is important and easy, please see our 'how to measure your PD' help section. If you do not add a PD measurement we will use the standard average 63mm for men and 60mm for women.
Pupillary Distance (PD) *
Pupillary Distance (PD) - RIGHT *
Pupillary Distance (PD) - LEFT *
Have a prism value on your prescription? *
OD - Left Direction *
OD - Left Power *
OD - Right Direction *
OD - Right Power *
Add transitions lenses? *
Transition lenses are the lenses that darken in the sunlight and lighten in softer light or the dark. They offer both style and convenience, and can help protect your eyes from UV. Our lenses use genuine Transitions technology.
What colour transitions lenses would you like? *
Would you like to add Blue Shield Technology? *
Blue shield technology includes a blue light blocker to reduce exposure to potentially harmful light from extended periods using electronic devices like phones, tablets and laptops. It also includes an anti-reflective coating to reduce glare and increase the amount of visible light passing through the lens. Plus toughened surfaces reduce the amount and effect of scratches.
Choose your lens package *
Want to add UV 400 protection? *
UV400' refers to UV rays at the top end of the UV spectrum, up to the 400-nanometre wavelength. Sunglasses with this level of protection block an even wider spectrum than the CE and British Standard models, making them the ultimate protection for your eyes.
Want to add a tint to your lenses? *
What colour tint would you like to add? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
Just to check *
I confirm that my prescription is correct with the correct values entered, my prescription is not over 2 years old, I am over 16 years of age, and that I am neither registered blind or partially sighted. I have read and agree to the Terms of Sale.
Free Shipping - Average Delivery in 1-3 Days

4.9/5 Over 100,000 Happy Customers Since 2010

Best, Brighter, Stronger. Easy Install.

COMMERCIAL SPECIFICATION GRADE

Shipping: FREE, In Stock

3rd Party Testing:  We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States.  Contact for Rebate Info.

Included Lamps: (4) ETL Sanitation & DLC Listed Clear/Frosted flicker-free, shatterproof polycarbonate 180 LPW (imported)

Fixture Designed in TEXAS, Made in Mexico.

Warranty: 5 years on complete fixture including LED lamps.

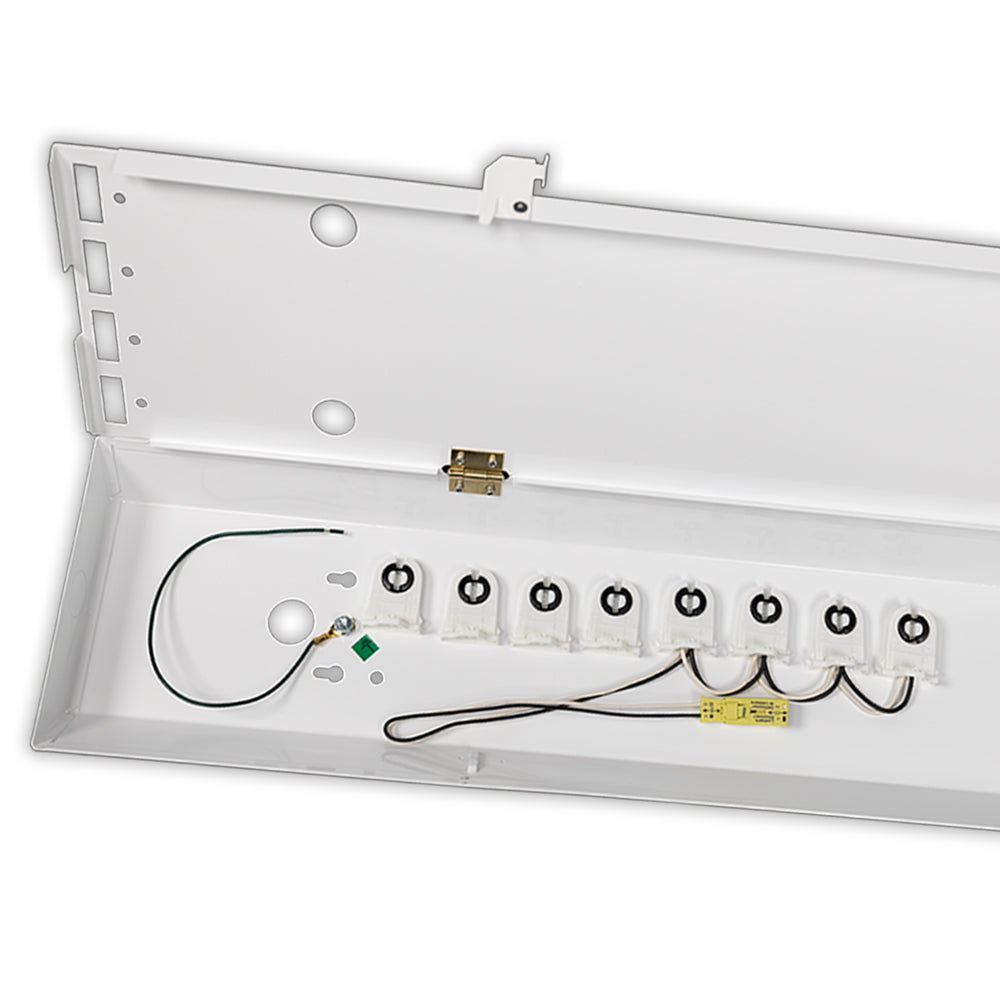

Specifications:  Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Clear/Frosted LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright, this is the last light fixture you will ever need!

Input Wattage: 80W

Voltage: 110-277V (call for 480V)

LED Lumens: 14,400

Lumens per watt: 180+

Color Temperature: 5000K (call for others)

CRI: 85+

L70 Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 28,800 (fluorescent equiv.)

Lamp Lens: Clear/Frosted

Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)

Dimming: No (not to be used with a dimmer switch, call for dimmable Stingray® options)

Click here for dimmable selections

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)

Assembled Dimensions: 48.5" Long x 6" Wide x 3" High

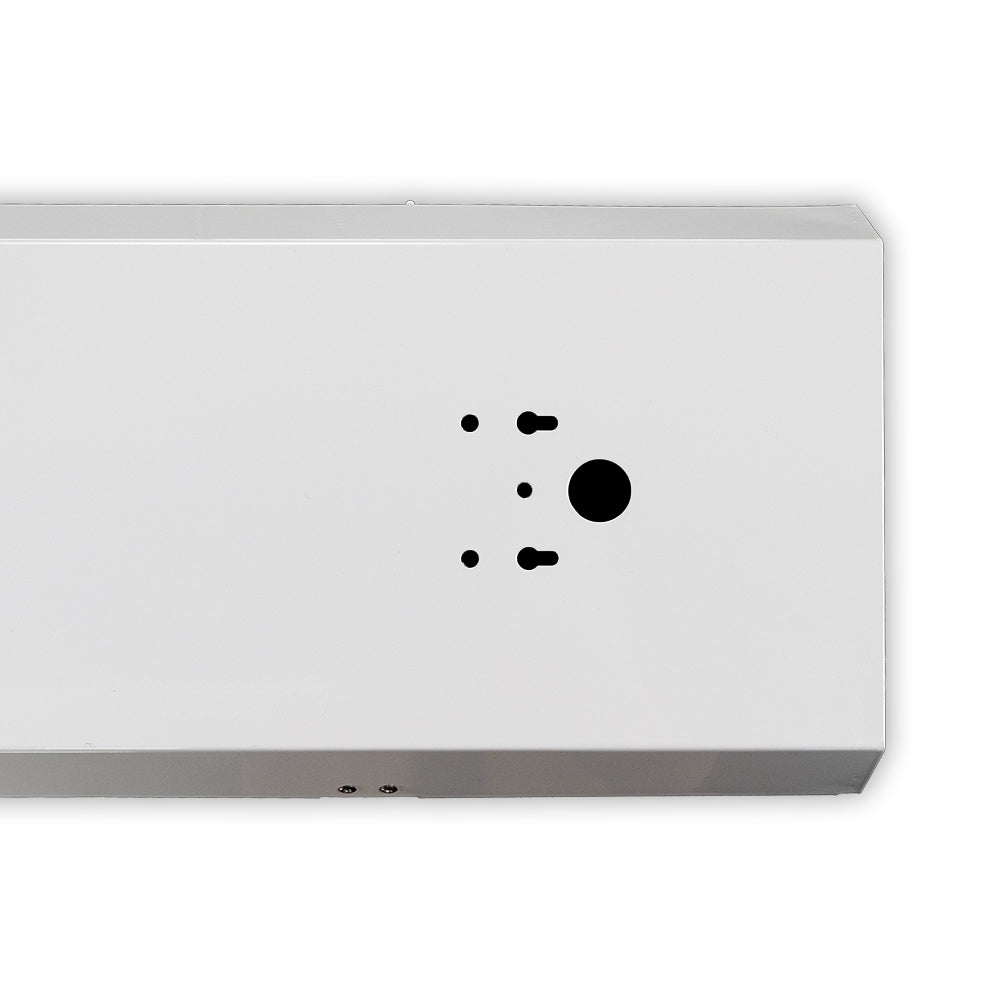

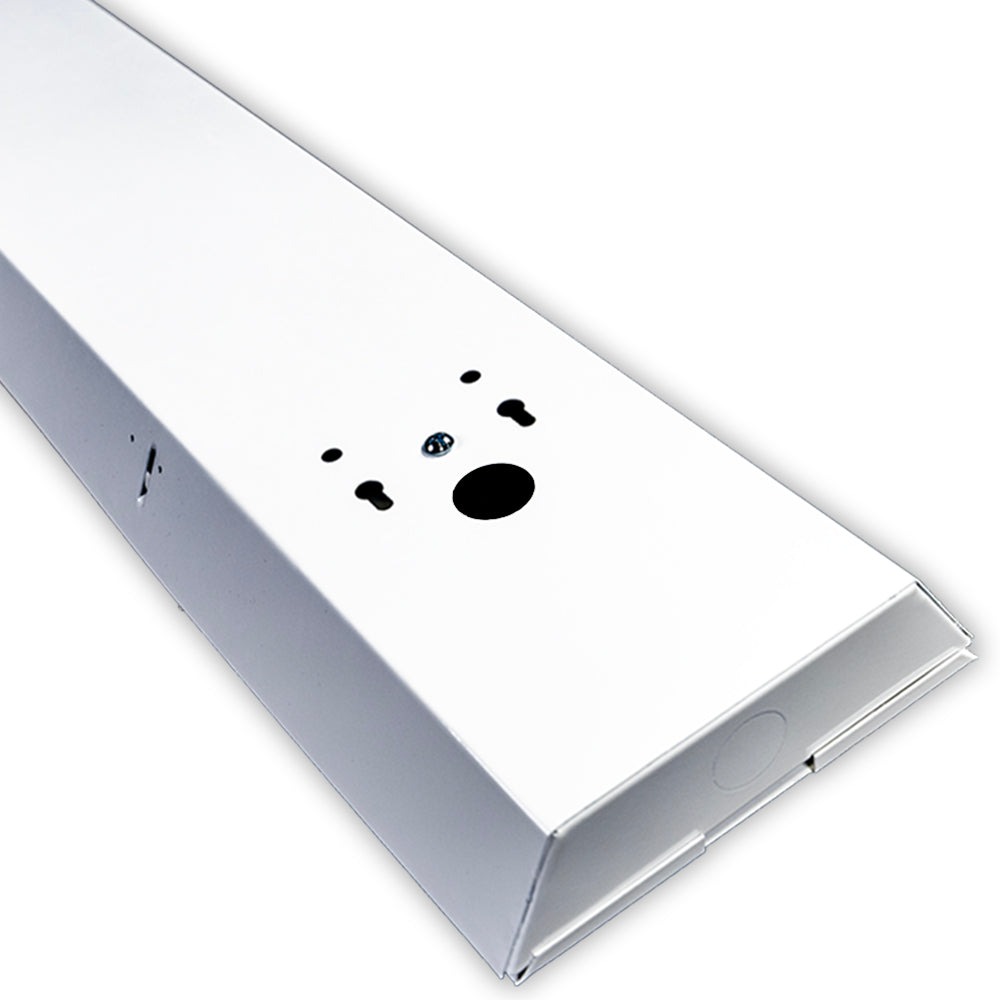

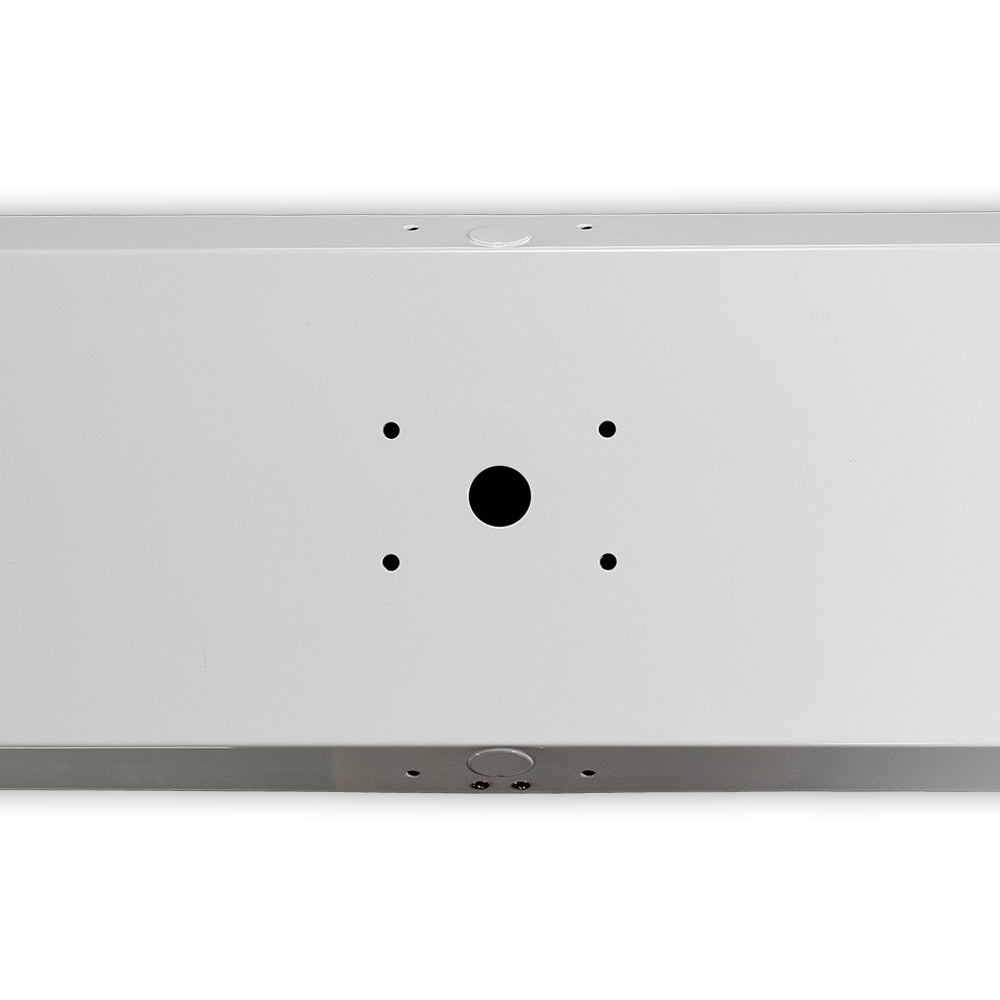

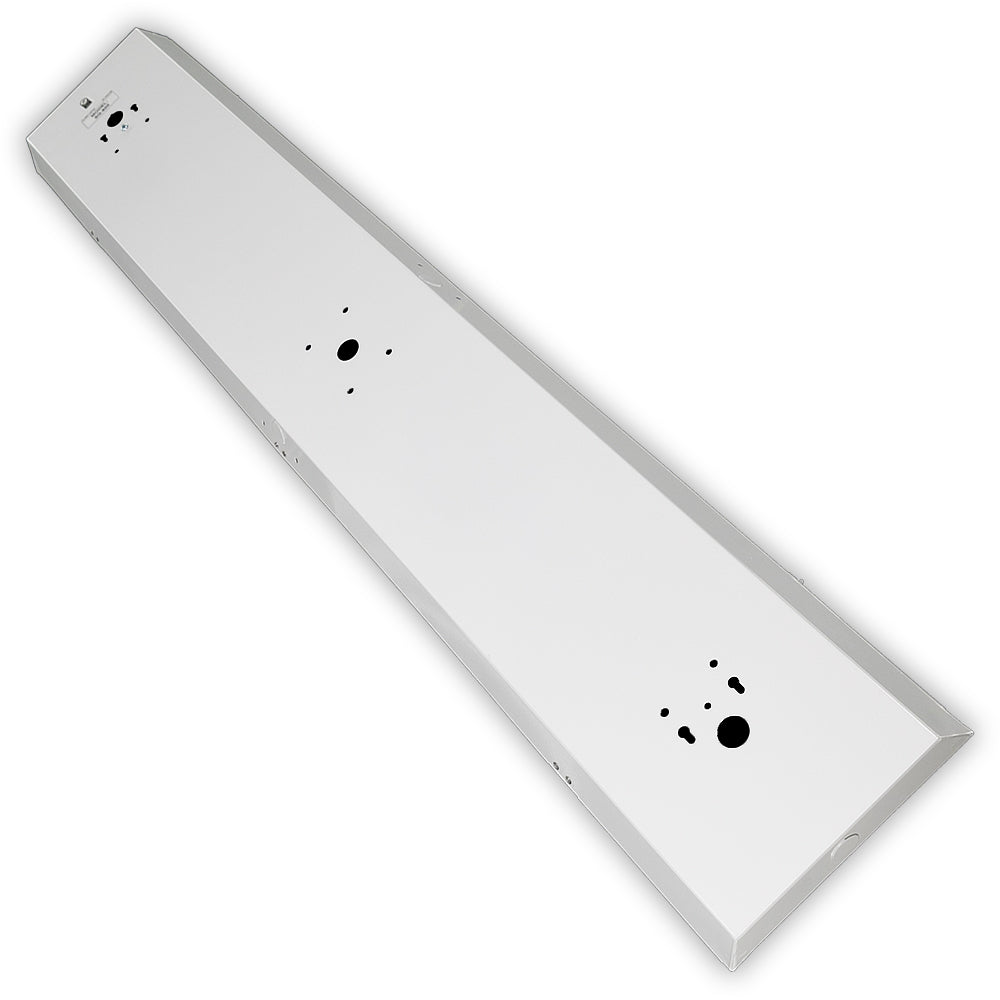

Mounting Dimensions:  48.38" x 4.25" on back of fixture

Total weight: 7 lbs

Part Number: PL-4SRHBG2-80XLCL

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)

Mounting Options: Hardware not included.

-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.

-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and “s” hooks.

*Energy Usage: Approx. 40% Less than T8 Fluorescent

*Specifications are subject to change without notice.

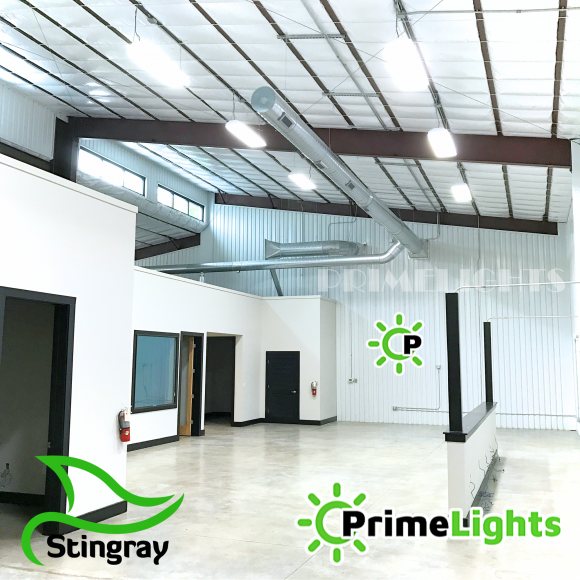

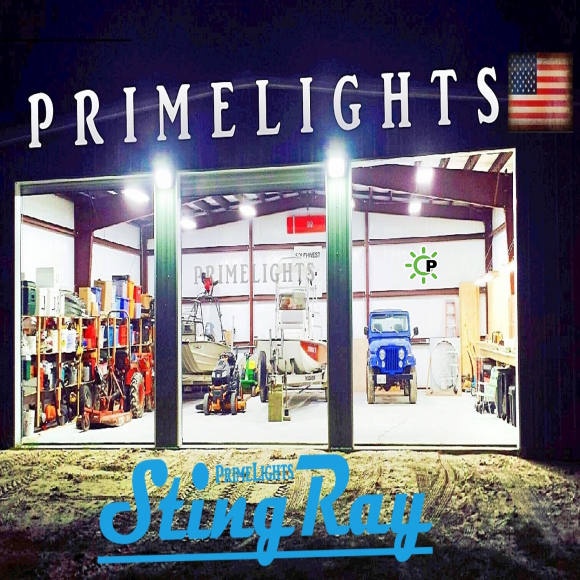

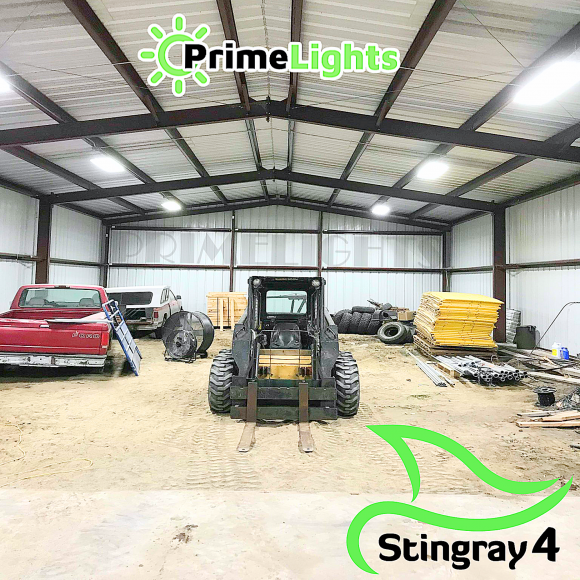

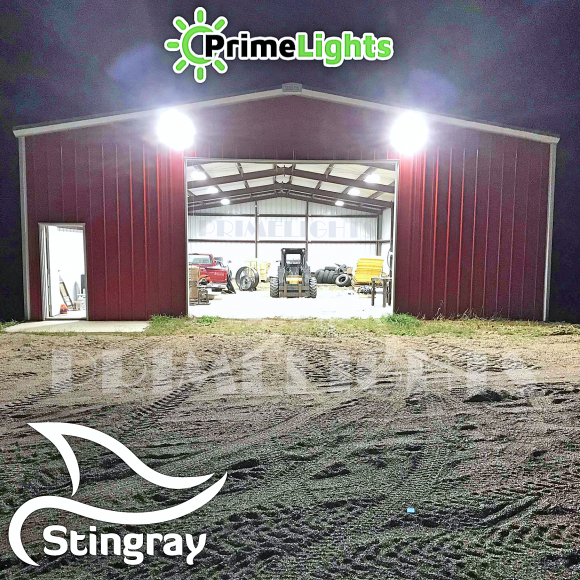

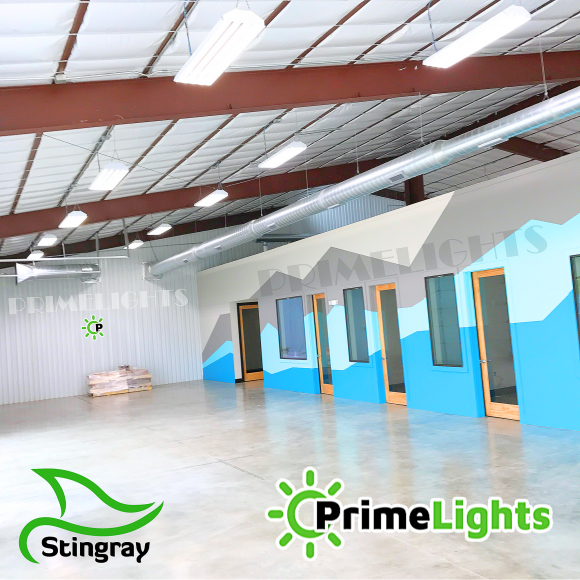

Applications:  The PrimeLights® LED Stingray® 4 is the ideal fixture for ceiling heights ranging up to about 20’, depending on spacing and application.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Frosted lamps provide reduced glare when compared to clear.  For higher ceilings please see our PrimeLights® LED Stingray® 6 Series.

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 250W metal halides, or approx. 1 fixture per 250sf for basic lighting.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  In just a few minutes, receive your free custom professional lighting layout over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels.  Call 512-843-1383.



THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®

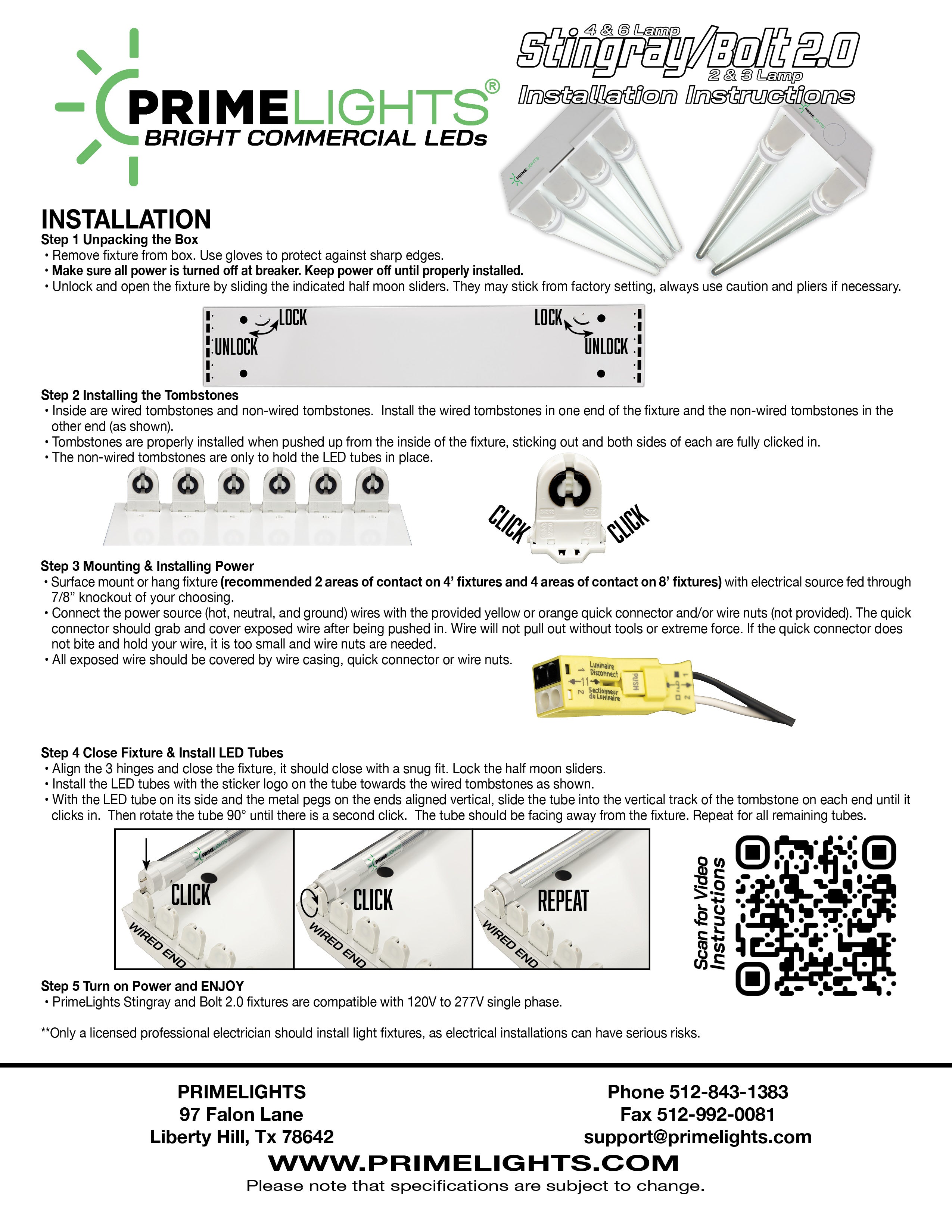

Cable Hanger Installation

 Cord & Plug Installation

 Occupancy Sensor Installation

 Wire Guard Installation






Shipping Policy

Same-day shipping on most orders before 2:00 p.m. All shipments are prepaid to the customer, freight is included in the price shown. PrimeLights guarantees product to arrive in brand new, undamaged condition. If shipping damages occur, please note with the shipper and contact our customer service immediately at support@primelights.com or 512-598-4961. PrimeLights will replace any product damaged in shipping with zero expense to the customer.

Return Policy

PrimeLights will accept returns within 30 days on unused stock products. Buyer will pay freight upon return if PrimeLights is not liable for miss-order. If PrimeLights is liable, PrimeLights will pay freight. If fixtures are used a restocking fee will be applied. Customer satisfaction is our priority and we’re happy to clear up any confusion and issues on the phone. No products will be accepted for return without prior authorization of seller.
