FREE SHIPPING ON ALL QUANTITIES
LED 6 LAMP T8 - 120 WATT LED HIGH BAY FIXTURE
COMMERCIAL SPECIFICATION GRADE
Shipping: FREE, In Stock
Certifications: UL Listed, NSF Certified, FCC, RoHS, Damp Rated
Warranty: 5 years on complete fixture including LED lamps
Included Lamps: (6) flicker-free, shatterproof polycarbonate (imported)
Fixture Made in Mexico - Final assembly at PrimeLights, Austin, TX
Specifications:

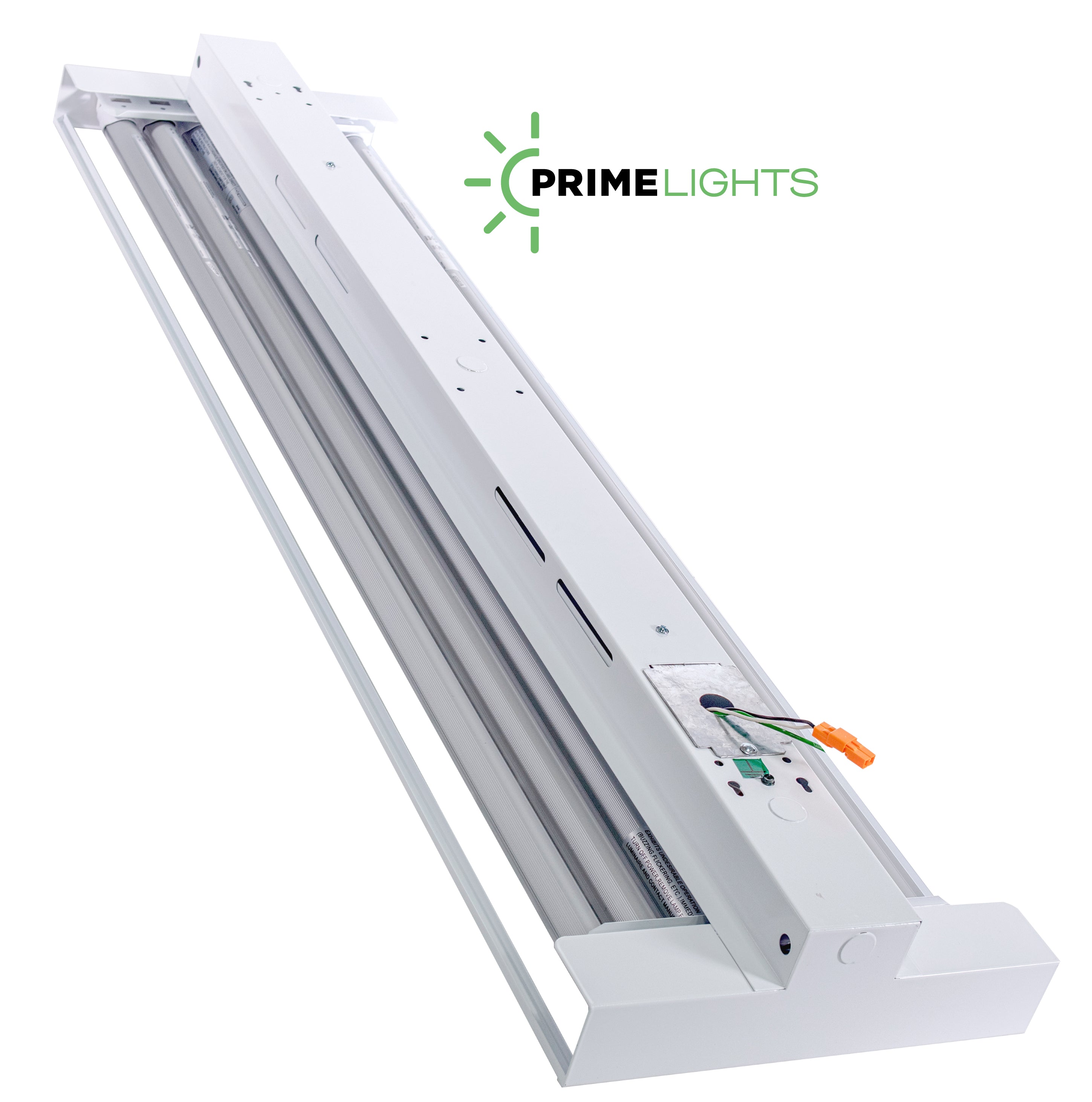

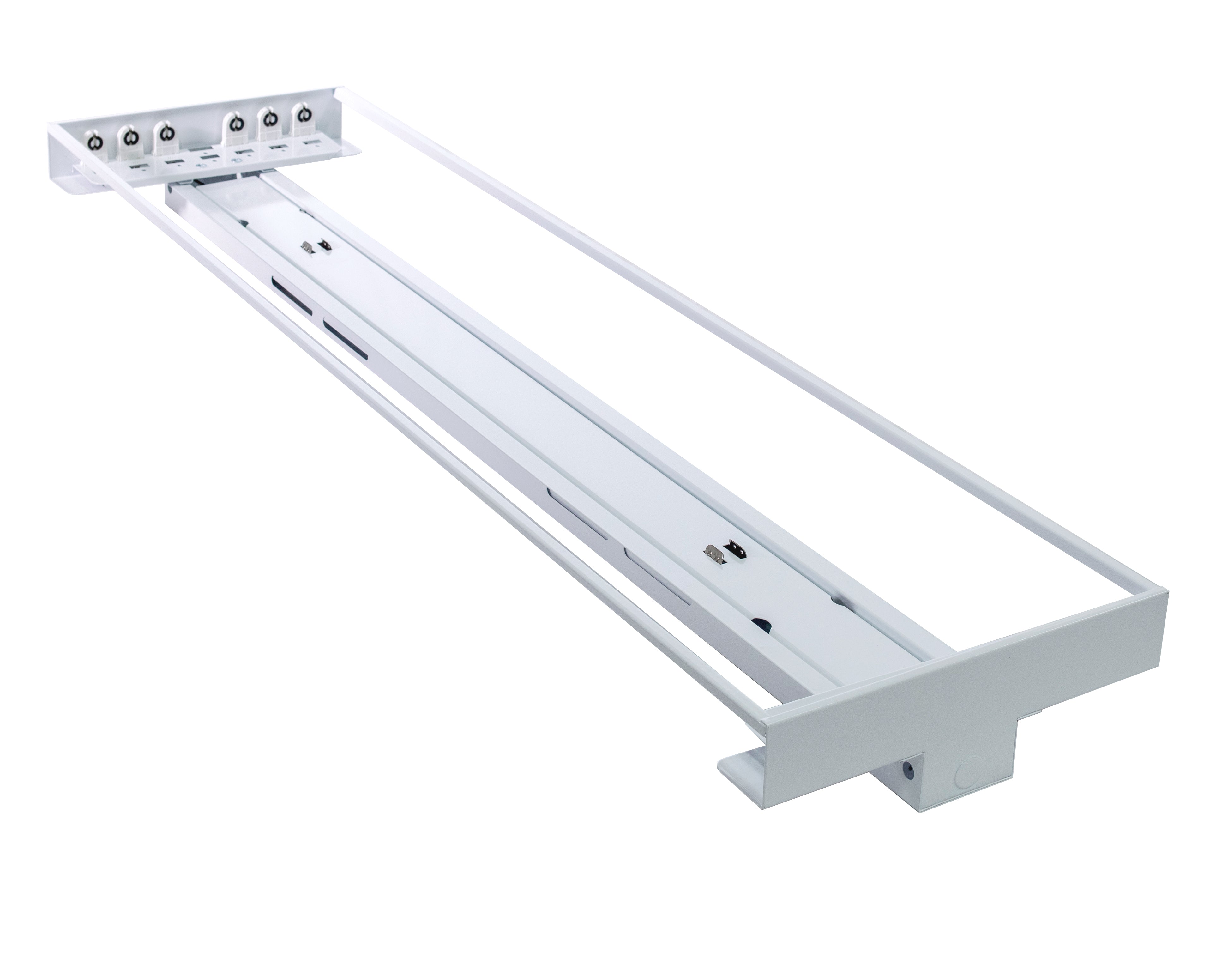

Developed by PrimeLights as the first fixture designed specifically for use with LED replaceable lamps. The Stingray® Air delivers all of the features you need and nothing you don't for a quick install with the legendary brightness the Stingray® is known for. Featuring the new "quick cover", install is a snap as no tools are required to access the inside of the fixture. The open "air" design allows for unparalleled heat dissipation to increase longevity while reducing places for dust and debris to settle making it virtually maintenance free. Made of 18 gauge steel and finished with an ultra durable white powder coat, the Stingray® Air will last for decades to come.
Input Wattage: 120W
Voltage: 100-277V
LED Lumens: 16,838
Lumens per watt: 140+
Life: 50,000 Hours +
Color Temperature: 5000K daylight white (call for others)
CRI: 83+
Beam Angle: 120°
Amperage @ 120V: 1A
Amperage @ 277V: 0.43A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 32,000 (fluorescent equiv.)
Lamp Lens: Clear (approximately 4% brighter than frosted)
LED Driver: Operates without ballast - Each lamp contains an individual driver
Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)
Length: 48.5" Width: 12.75" Depth: 4.125"
Mounting Options:
-Surface mountable
-Chain hang (cable hangers sold in accessories)
-This fixture is ready for hard wire install - please see parts & accessories for additional options including plug and cord, hangers, and occupancy sensors.
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: Warehouse, machine shop, pole barn, farm, ranch, auto shop, work shop, home garage, welding shop, airplane hangar, just to name a few!
Lighting Layouts: As a rough estimate, change these out 1 for 1 with 400W metal halides, or any 6 lamp fluorescent to really brighten things us. For new applications, recommended mounting heights are 14' - 25' and approx. 1 fixture per 350sf as a rough guide. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: length, width, height and application of the building. Call 512-843-1383. Our layouts our guaranteed to satisfy!
* All sales are final. However, a 1-year warranty is provided for exchanges of defective products with a similar fixture.
