Call For Free Lighting Layouts!
512-843-1383
Best, Brighter, Stronger. Easy Install.
COMMERCIAL SPECIFICATION GRADE
LED Motion Activated Occupancy Shop Light
WITH Programable Motion Activation Sensor with 35' Range
Shipping: FREE, In Stock
3rd Party Testing: We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States. Contact for Rebate Info.
Included Lamps: (6) ETL Sanitation & DLC Listed Frosted flicker-free, shatterproof polycarbonate 180 LPW (imported)
Fixture Designed in TEXAS, Made in Mexico.
Warranty: 5 years on complete fixture including LED lamps.

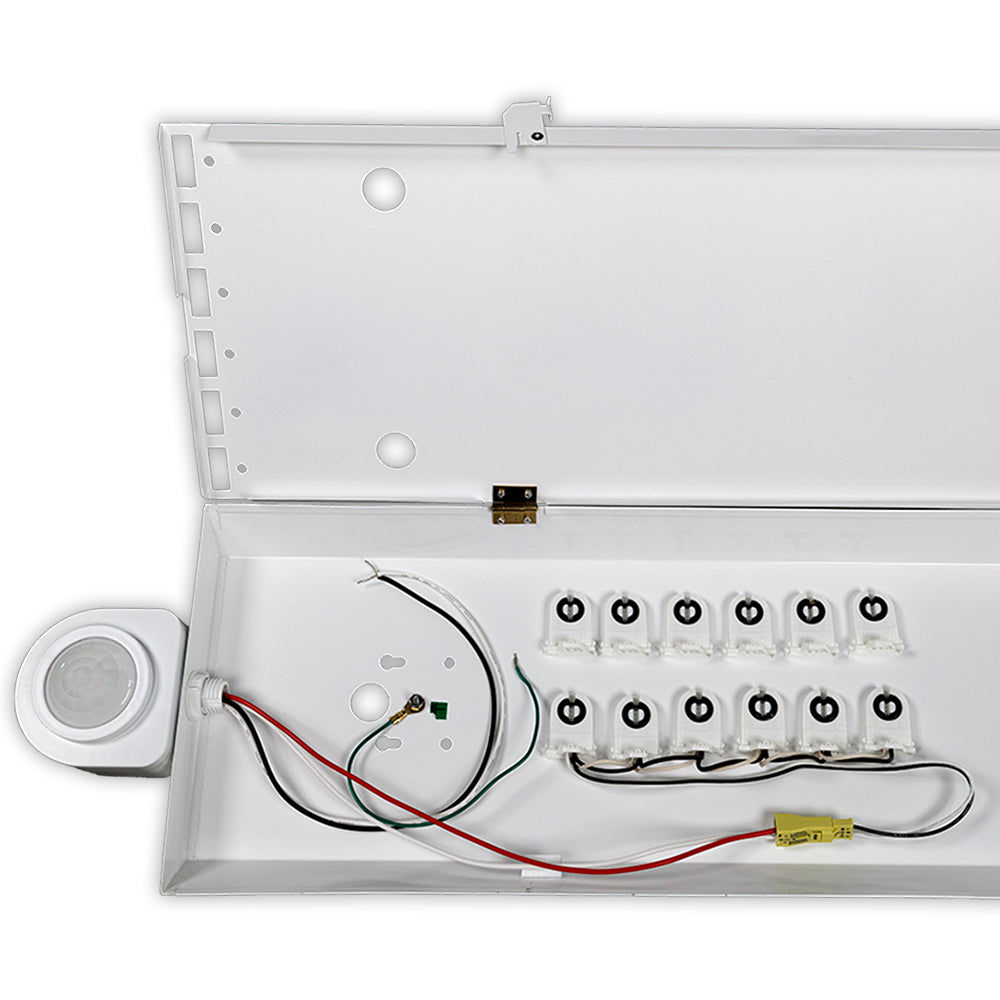

Specifications: Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector. Frosted LED bulbs with internal drivers - no external drivers or ballasts to maintain. You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years. 110v,120v, 240v, 277v. Long lasting, durable, and bright, this is the last light fixture you will ever need!
Input Wattage: 120W
Voltage: 110-277V (call for 480V)
LED Lumens: 21,600
Lumens per watt: 180+
Color Temperature: 5000K (call for others)
CRI: 85+
L70 Life: >50,000 Hours
Beam Angle: 120°
Amperage @ 120V: 1.1A / Amperage @ 277V: 0.48A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 43,200 (fluorescent equiv.)
Lamp Lens: Frosted
Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)
Dimming: No (not to be used with a dimmer switch, call for dimmable Stingray® options)
Click here for dimmable selections
LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver
Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)
Assembled Dimensions: 52" Long x 9" Wide x 3" High
Mounting Dimensions: 52" x 7" on back of fixture
Total weight: 11 lbs
Part Number: PL-6SRHBG2MD-120XLFR
Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)
Mounting Options: Hardware not included.
-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.
-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and “s” hooks.
*Energy Usage: Approx. 40% Less than T8 Fluorescent
*Specifications are subject to change without notice.

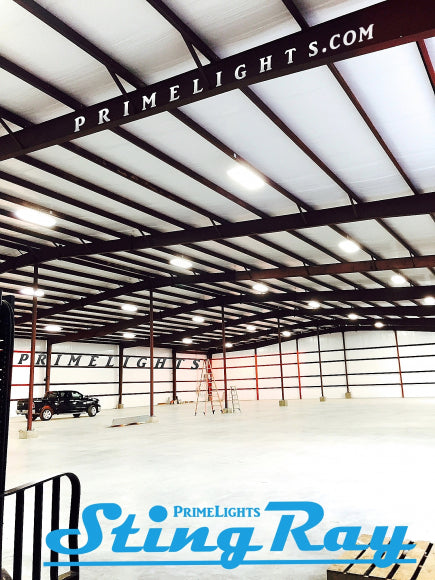

Applications: The PrimeLights® LED Stingray® 6 is the ideal fixture for ceiling heights ranging up to about 35’, depending on spacing and application. Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures. Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few. Frosted lamps provide reduced glare when compared to clear. For lower ceilings please see our PrimeLights® LED Stingray® 4 Series.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with 400W metal halides, or approx. 1 fixture per 400sf for basic lighting. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. In just a few minutes, receive your free custom professional lighting layout over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels. Call 512-843-1383.
THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®
Cable Hanger Installation
Cord & Plug Installation
Occupancy Sensor Installation
Wire Guard Installation
In Stock - We are Trying to Keep up With Demand. Notice Will be Given When Out of Stock, So Get Em' While They're Hot!
| Quality |
Rated 4 out of 5
|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
Fantastic light and I would definitely recommend it
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
This is my second order, great product so far.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
Solid lights. Light weight, good build and easy to install/hang. I have a few recommendations.
1. Beef up or modify the clips that close the enclosure. The clips don’t seem to always stay latched.
2. Adjust or modify the sensor so that there is a way to keep the sensor on one of the ends, while still allowing space for an 1/2 emc pipe to connect to the end. With the existing build I had to move the sensor to the middle of the lamp allowing me to still connect the light in a series and keeping it professional looking.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
The sensor of the light work so well. And it very bright.
We love it. Will prefer to my friends about your products.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
I purchased 3 StingRay 4XL lights for my 3 car garage. I had some questions before the purchase which I e-mailed to Prime Lights. Steve reached out the next day, answered all my questions, and facilitated my purchase. The lights were delivered in 2 days, were well packed, and are very sturdy.
The installation is best done with 2 people to hold the lights while installing and wiring. The panel on the lights where the house wiring enters the light was raised about 1/4 inch and I had to flatten it to make the light fit flush to the ceiling. I also added a rubber grommet to prevent chafing where the wiring came through the fixture.
The LED lights are much brighter and illuminate the whole garage more evenly than before! The motion detectors work great, turning the lights on whenever you enter the garage from the house or outside. You can program the ambient light level threshold to trigger the lights and the length of time the lights stay on without motion (10 sec, 1, 3, 5, 10, 20, 30 mins). The installation & use pamphlets could have been better written.
Overall, I am very happy with my purchase and the customer service I received and I would, and already have, recommended Prime Lights to my friends.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
