4ft.LED 4 Lamp T8 STINGRAY 4XL GEN 2.0: Brighter, Most Efficient, Sleeker - 80W Clear LEDs - With 90 Minute Emergency Battery Backup 14,400 lumens

Best, Brighter, Stronger. Easy Install.

COMMERCIAL SPECIFICATION GRADE

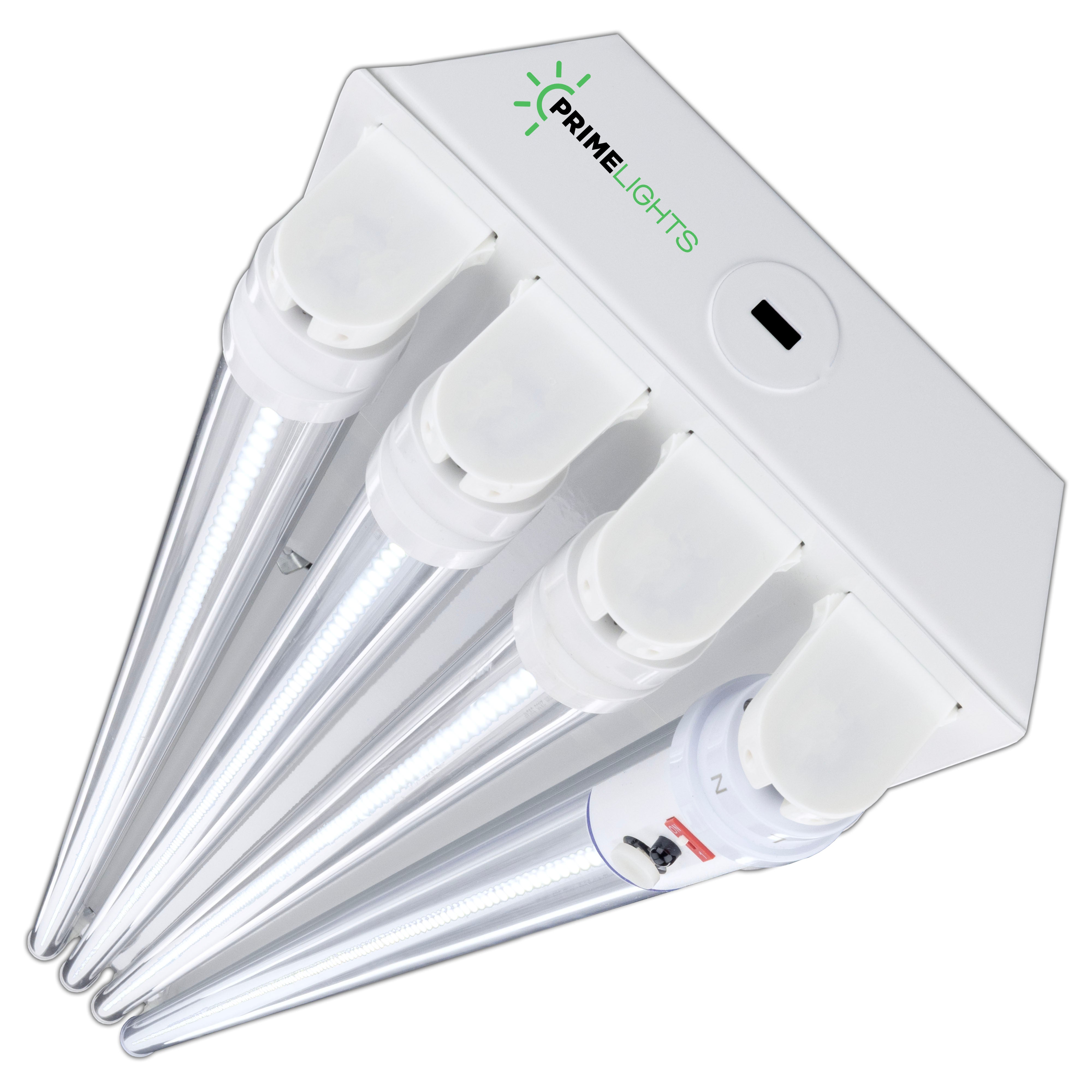

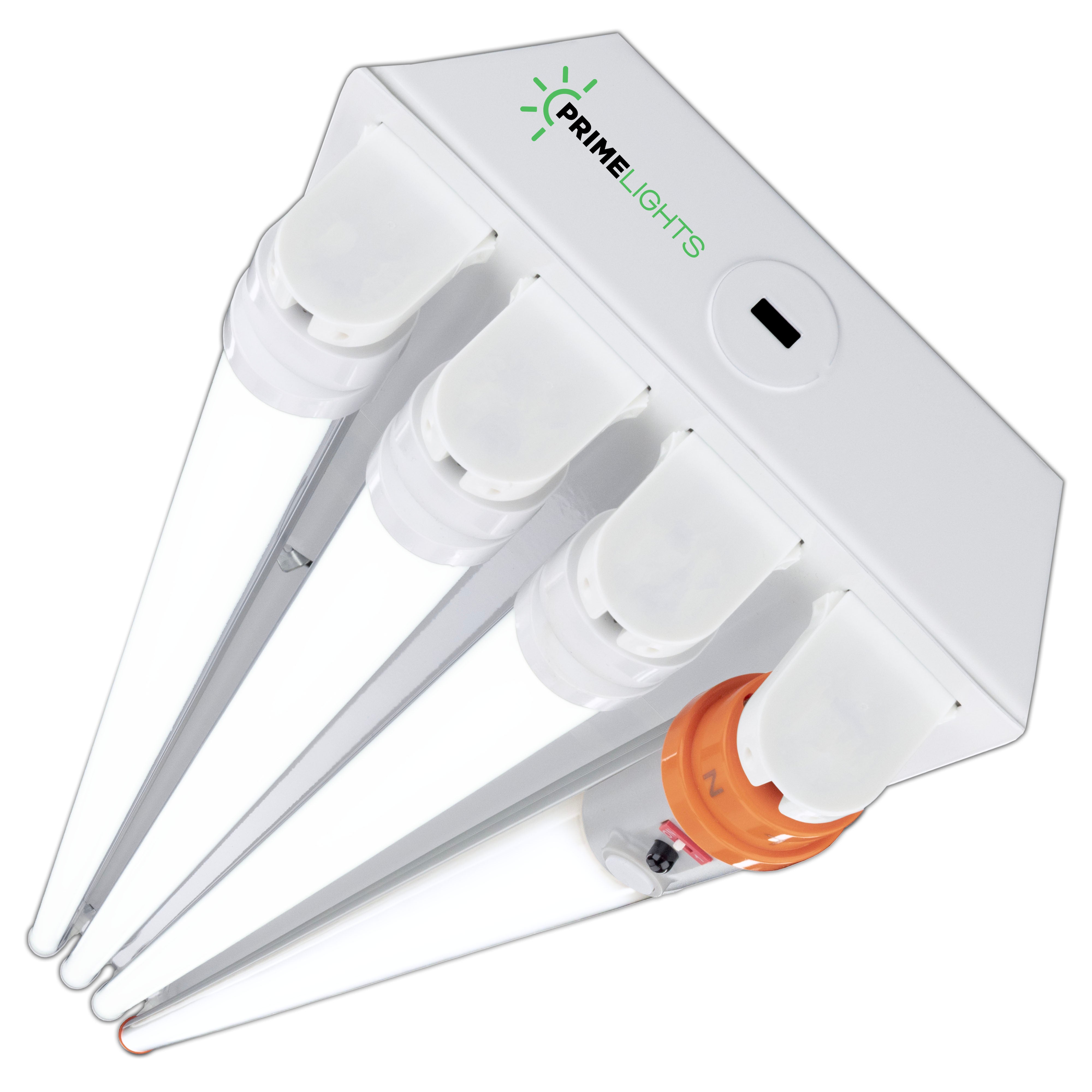

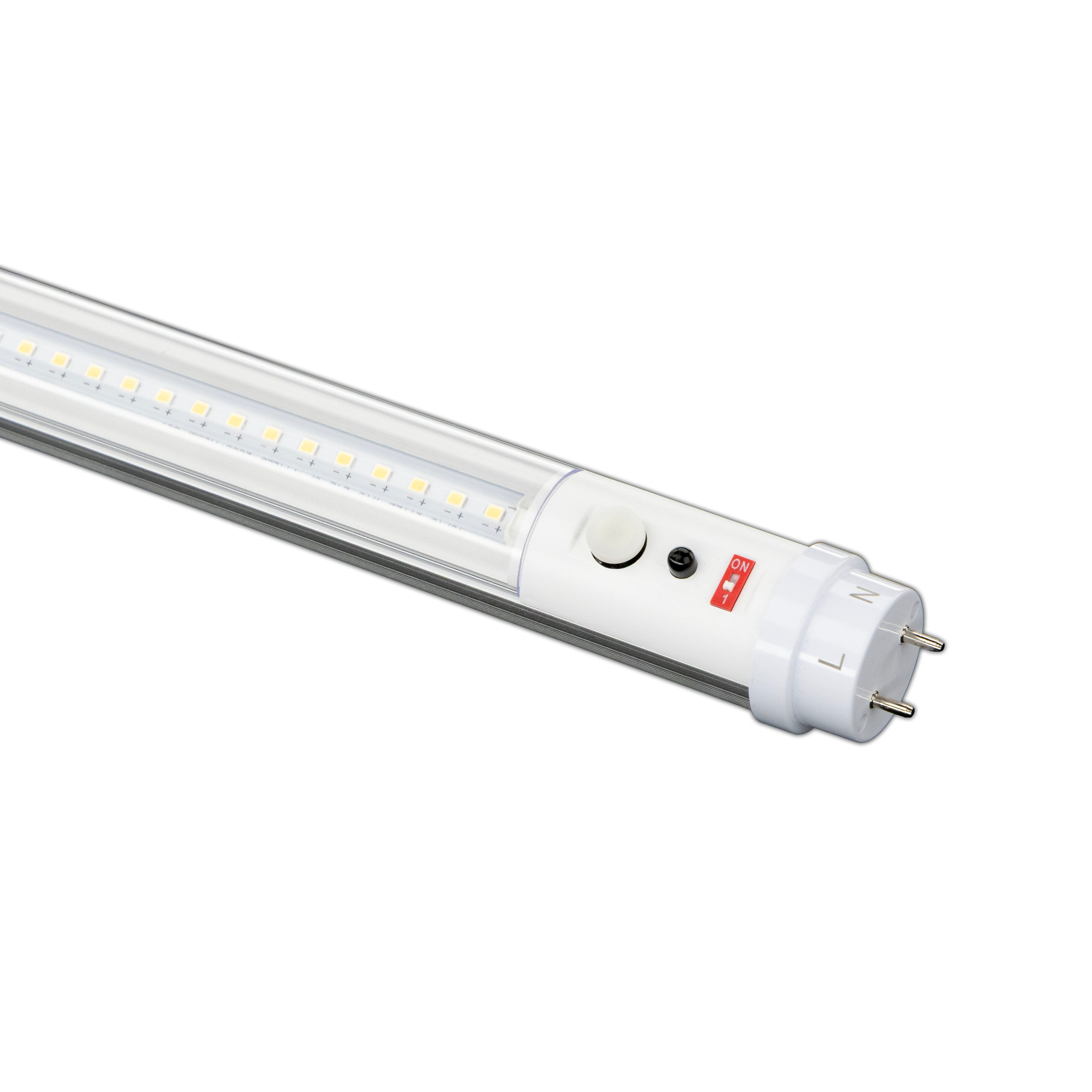

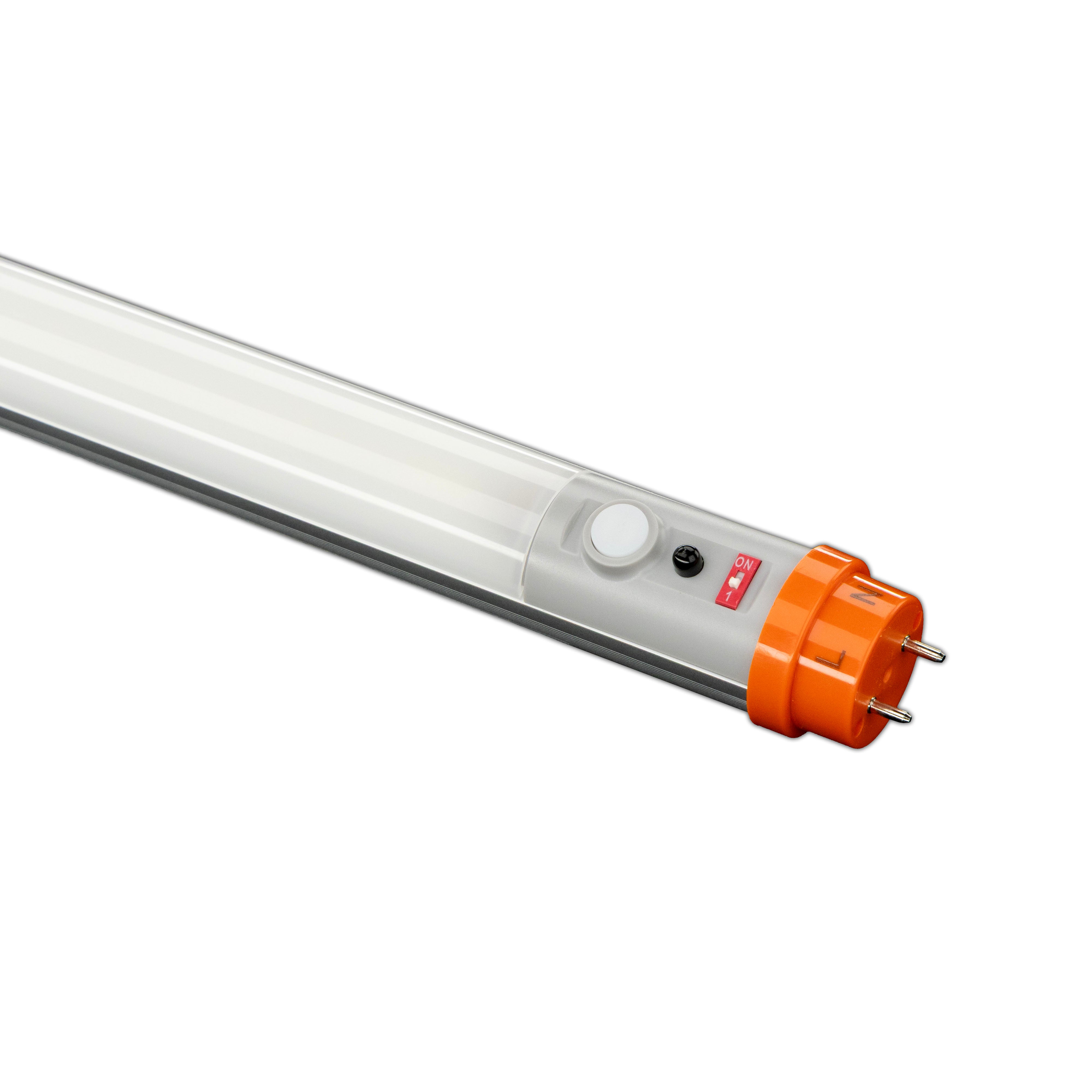

Clear version comes with independently wired 90 minute EM battery backup tube, whereas the frosted version features a factory installed 90 minute EM battery pack. For both options the light will run for and additional 90 minutes after power outage.  UL listed and tested thoroughly so you can count on it when you need it most.

COMMERCIAL SPECIFICATION GRADE COMPLAINT WITH ANY CODE REQUIRING EMERGENCY BACKUP BATTERY LIGHTS.  IDEAL FOR STORES, WAREHOUSES, BUSINESS'S AND SHOPS THAT REQUIRE A BATTERY BACKUP.

Shipping: FREE, In Stock

3rd Party Testing:  We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States.  Contact for Rebate Info.

Included Lamps: (4) ETL Sanitation & DLC Listed Clear or Frosted flicker-free, shatterproof polycarbonate 180 LPW (imported)

Fixture Designed in TEXAS, Made in Mexico.

Warranty: 5 years on complete fixture including LED lamps.

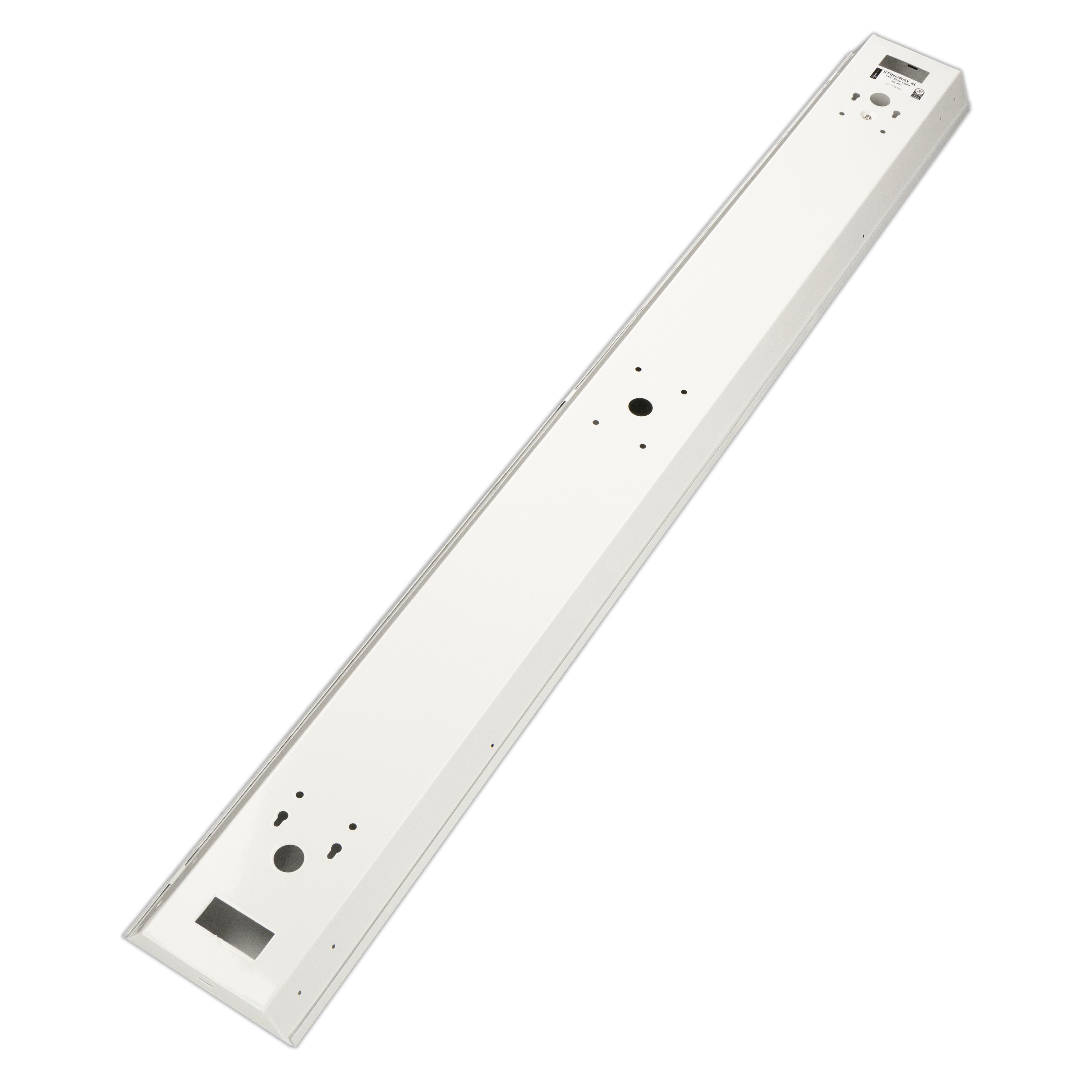

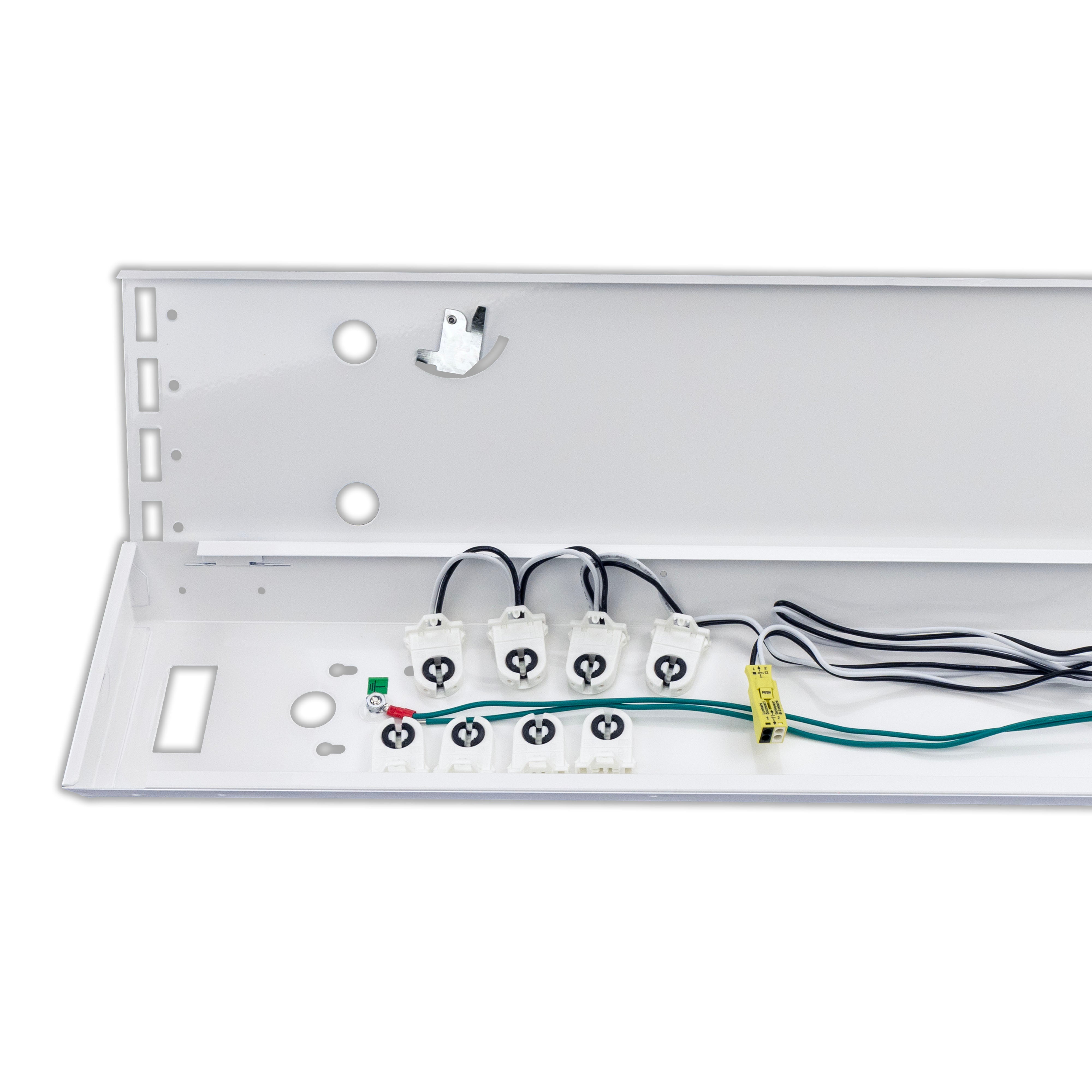

Specifications:  Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Clear or Frosted LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright, this is the last light fixture you will ever need!

Input Wattage: 80W

Voltage: 110-277V (call for 480V)

LED Lumens: 14,400

Lumens per watt: 180+

Color Temperature: 5000K (call for others)

CRI: 85+

L70 Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 28,800 (fluorescent equiv.)

Lamp Lens: Clear or Frosted

Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)

Dimming: No (not to be used with a dimmer switch, call for dimmable Stingray® options)

Click here for dimmable selections

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)

Assembled Dimensions: 48.5" Long x 6" Wide x 3" High

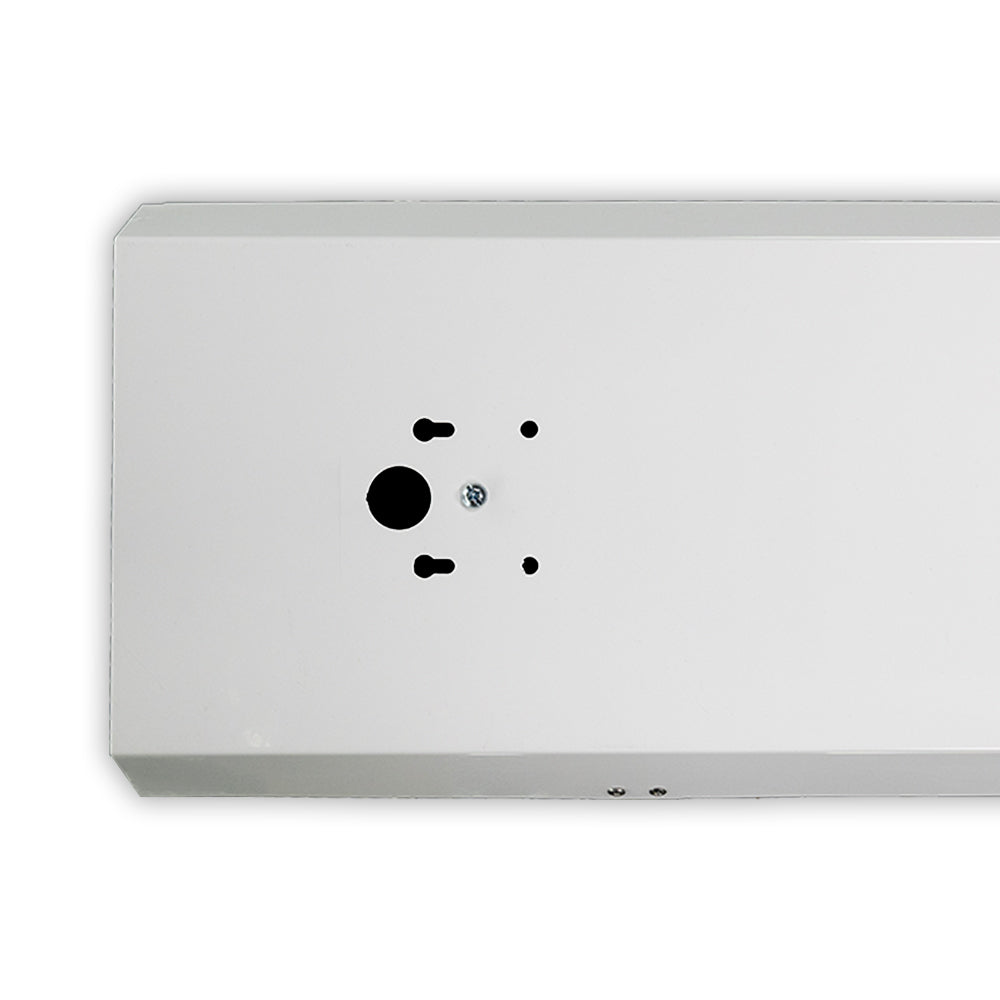

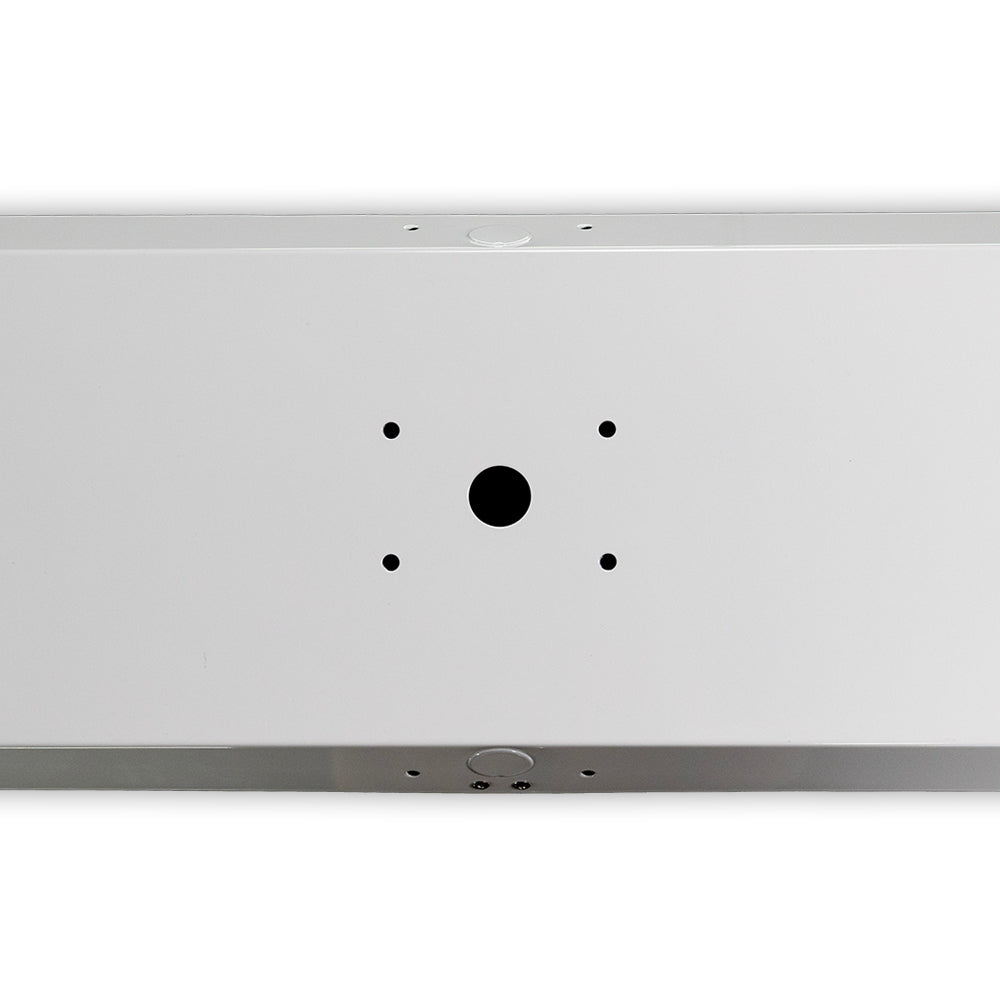

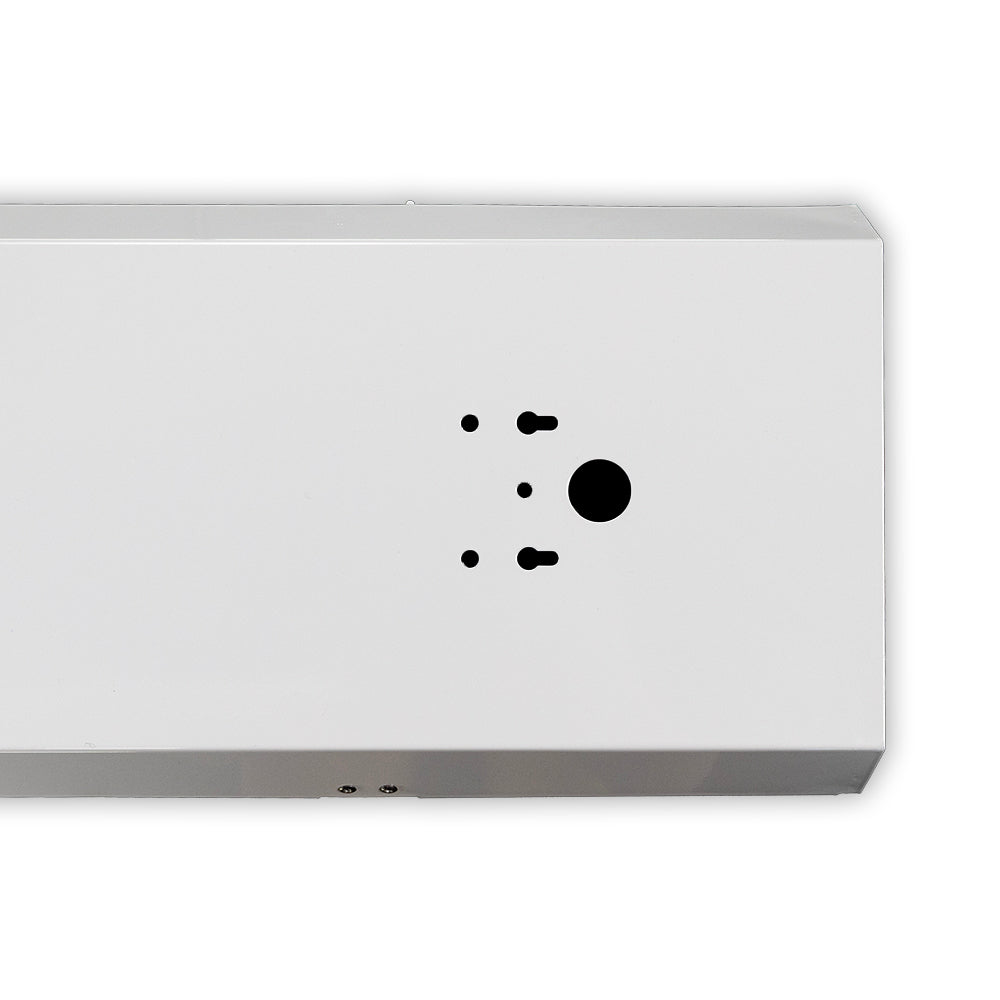

Mounting Dimensions:  48.38" x 4.25" on back of fixture

Total weight: 7 lbs

Part Number: PL-4SRHBG2EM-80XLXX (CL or FR)

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)

Mounting Options: Hardware not included.

-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.

-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and “s” hooks.

*Energy Usage: Approx. 40% Less than T8 Fluorescent

*Specifications are subject to change without notice.

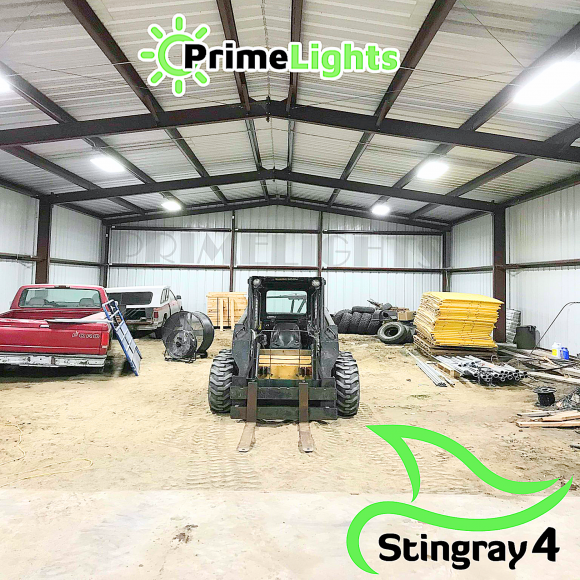

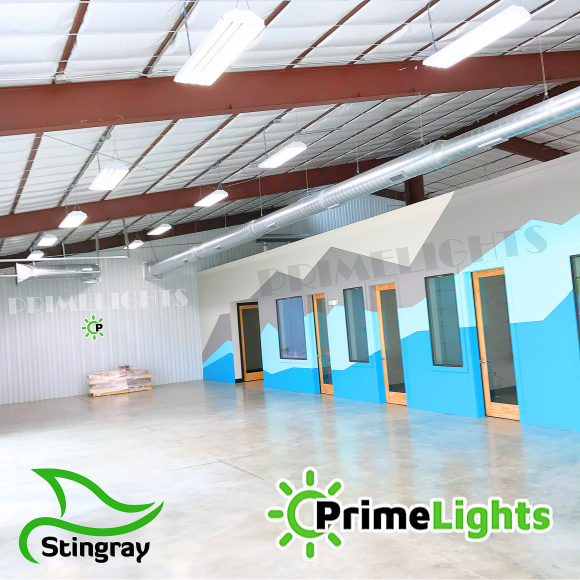

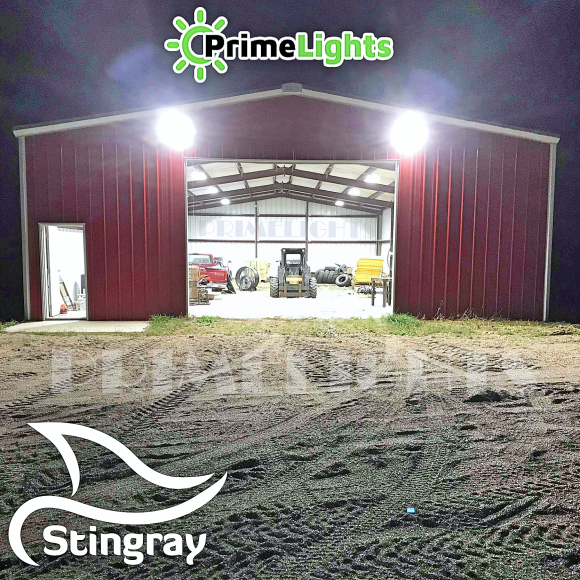

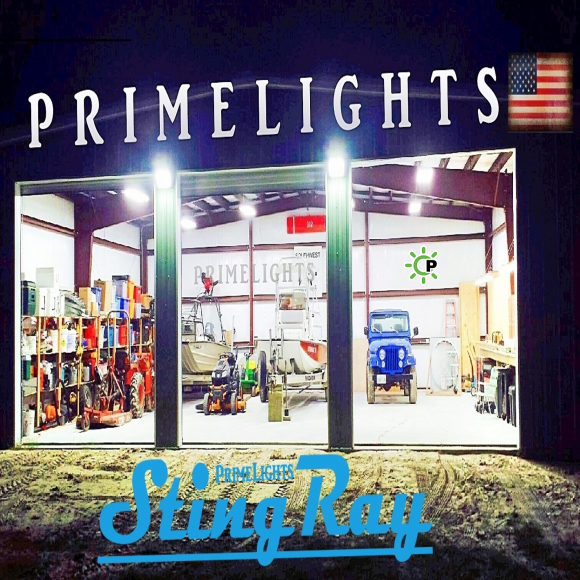

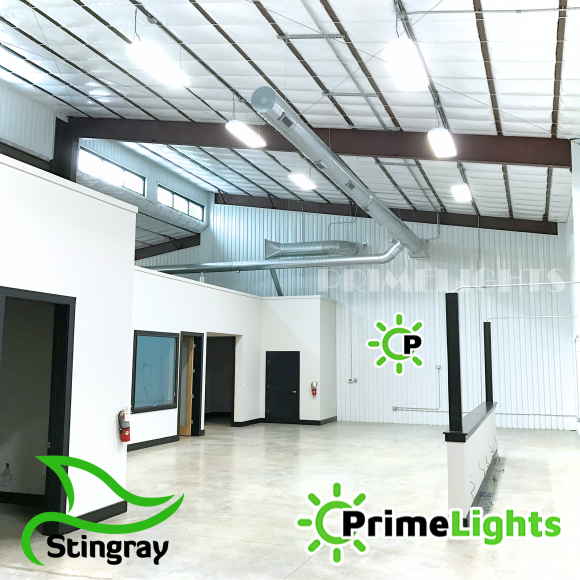

Applications:  The PrimeLights® LED Stingray® 4 is the ideal fixture for ceiling heights ranging up to about 20’, depending on spacing and application.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Frosted lamps provide reduced glare when compared to clear.  For higher ceilings please see our PrimeLights® LED Stingray® 6 Series.

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 250W metal halides, or approx. 1 fixture per 250sf for basic lighting.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  In just a few minutes, receive your free custom professional lighting layout over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels.  Call 512-843-1383.

THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®
